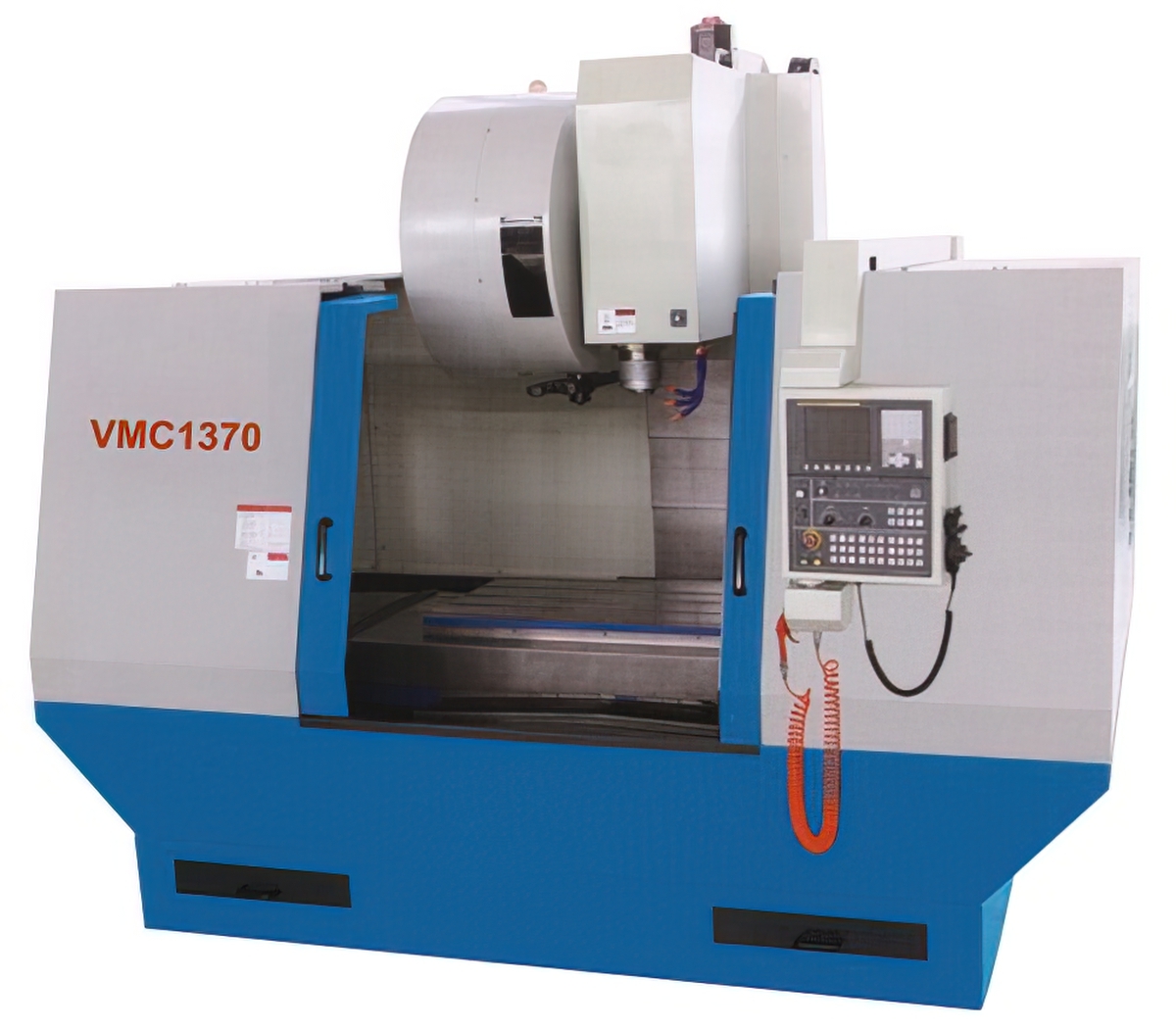

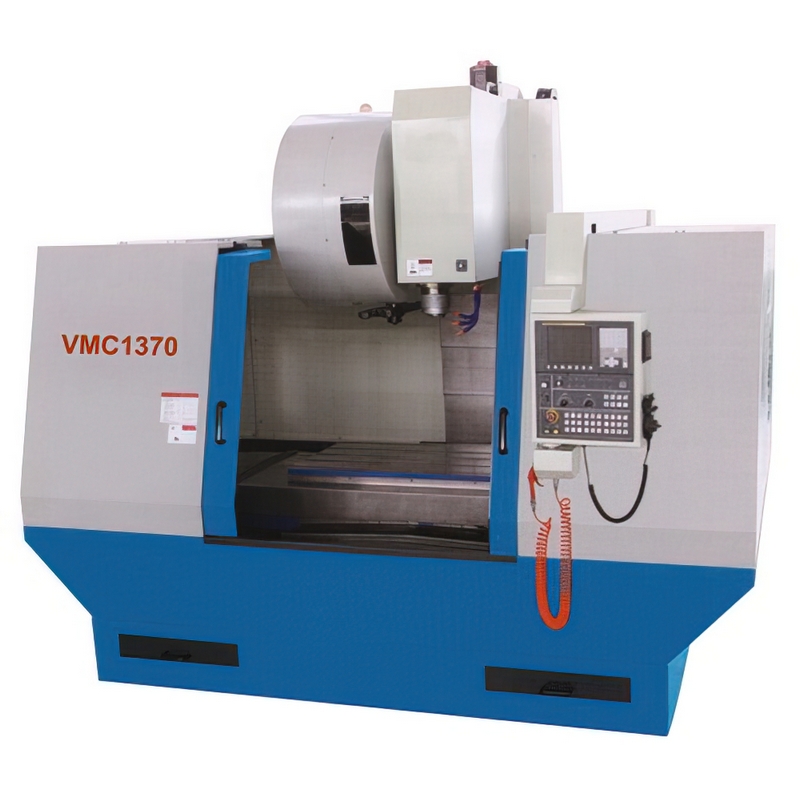

VMC1370 / 1580 CNC Machining Center

Category: CNC Machining Center



 Model No.

VMC1370

VMC1580

 Item No.





 Specifications

 X travel

1300 mm

1500 mm

 Y travel

700 mm

800 mm

 Z travel

650 mm

700 mm

 Distance between spindle center and

    column guide way

785 mm

800 mm

 Distance between spindle end and table

150 - 800 mm

170 - 870 mm

 Table size

1400 x 710 mm

1700 x 800 mm

 Max. table load

1000 kg

1500kg

 T-slot (width x number x space)

18 x 5 x 152.5 mm

22 x 5 x 135 mm

 Taper bore of spindle

BT 50

 Spindle speed

50 ~ 6000 rpm

 Main motor power

15 / 18.5 kw

 Cutter removal from spindle

Pneumatic

 X. Y travel speed

20 m/min.

 Z travel speed

20 m/min.

 X. Y. Z motor torque

22Nm(or~)

 Repeatability(X/Y/Z)

± 0. 003 mm

 Tool number

vertical Type 24

 Max. tool size (With adjacent tool)

Φ127 mm

 Max. tool size (Without adjacent tool)

Φ150 mm

 Max. tool length

300 mm

 Max. tool weight

15 kg

 Tool changing time (cut to cut)

3s

 Min. Input

0.001 mm

 Overall dimensilns (L x W x H)

3500 x 3390 x 2865 mm

4286 x 3110 x 3059 mm

 Net weight

12000 kg

15000 kg
